EASYCUT SWING BEAM SHEARS

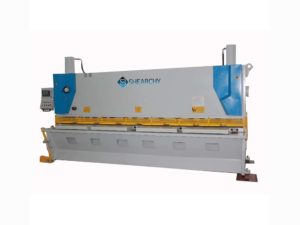

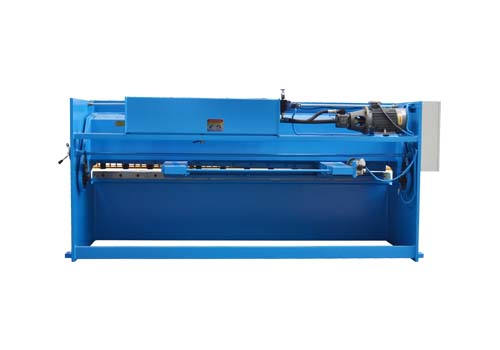

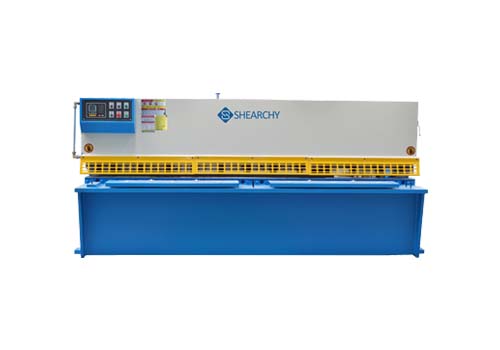

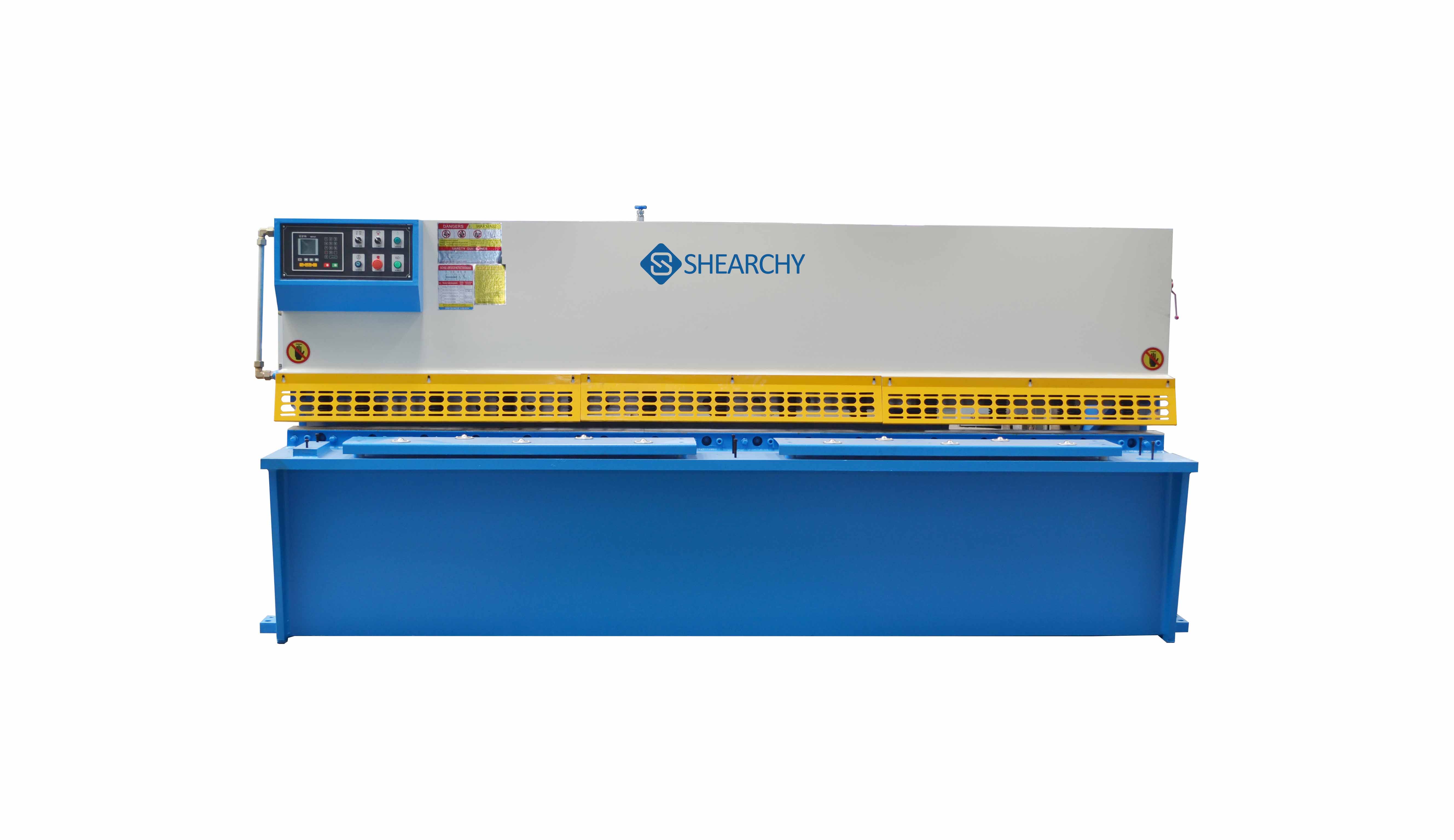

  • The hydraulic swing beam shear is the perfect solution for cutting sheet metal with thicknesses between 4mm and 10mm.
  • The hydraulic swing beam shear can handle the large dimensions required in tube and roll forming manufacturing lines.
  • Besides handling large dimensions, the hydraulic swing beam shear can also be configured for piercing and blanking.

Category: Tag:

Description

Quick Details

Condition: New                                  Brand Name:  Shearchy                                  Machine Type:  Swing beam shear
Raw Material:Steel plate                  Warranty: 13 months                                       Certification: ISO, SGS, CE
After-sales Service Provided:Engineers available to service machinery overseas


EASYCUT SWING BEAM SHEARS Product Description

The design meets EU international standards. Welding parts uses tempering, vibration and other processing methods to eliminate stress ensuring the structural strength and rigidity of each component;All machines are designed using SOLID WORKS 3D programming and made with enhanced ST44-1 quality steel with the latest technology.
Backgauge is adjusted by high-precision ball screw and linear guide driven by E21S controller.
Ball screw and Linear guide structure, using  frequency converter positions X axis to ensure accuracy, unique designed timing transmission mechanism, stable and reliable.Rigid upper beam runs on 8-point bearings with bending precision of +/-0.01 mm.
Front safeguard rail adopts opening door cut off power,ensuring the operational safety.
Rapid adjustment mechanism for rearranging blade clearance, simple operation by hand and adjusting steplessly.


EASYCUT SWING BEAM SHEARS Configuration:

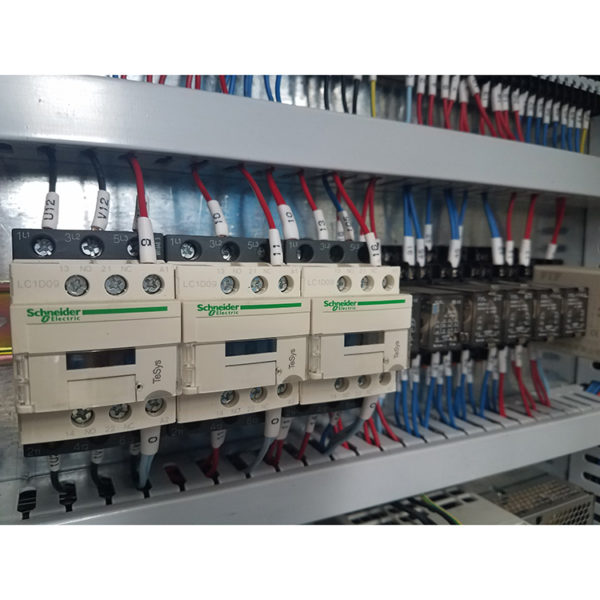

  1. Standard electrics from Schneider,France.

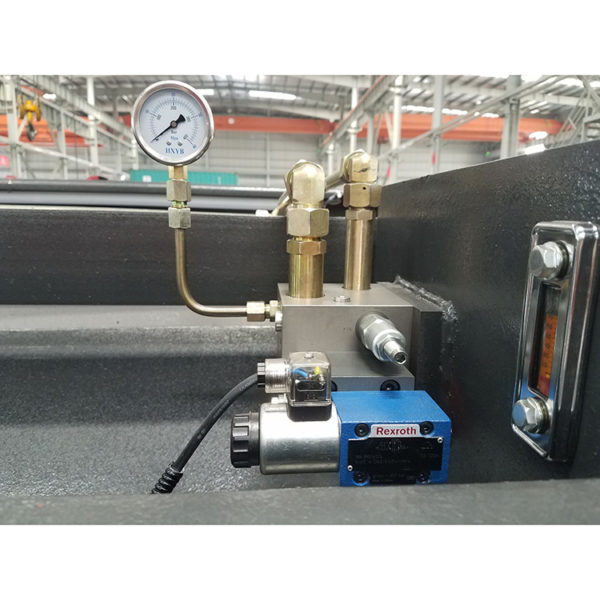

  2. Standard valves and oil pump from Bosch Rexroth Germany.
  3. Standard main motror from Siemens Germany
  4. Hydraulic and electrical overload protection

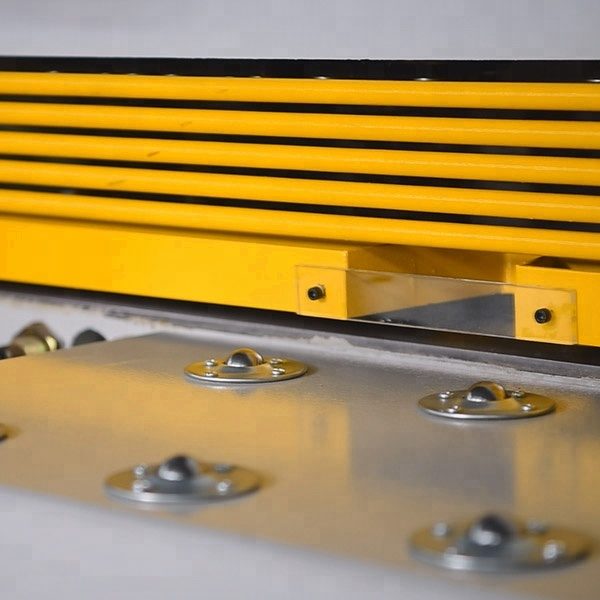

  5. Light guards ensure the safety of operators during operation(optional)

EASYCUT SWING BEAM SHEARS Controller:

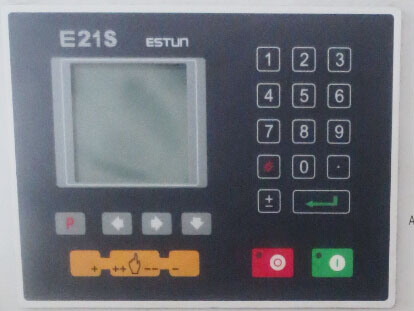

Standard controller: E21S

Backgauge control.
Control for general AC motors,frequency inverted.
X-axis intelligent positioning.
Double programmable digital output.
Stock counter.
Program memory for up to 40 steps,up to 25 steps per program.
One side positioning.
Retract function.
One key backup/restore of parameters.
Units:Mm/inch.
Language:Chinese/English






Technical Data

Modeks Mild Steel (450MPa) Cutting Length (mm) Back Gauge Range(mm) Depth Of Thoat(mm) Strokes Per Minute Main Motor(KW)
6×2500 6 2500 750 80 14 7.5
6×3200 6 3200 750 80 12 7.5
6×4000 6 4000 750 80 10 7.5
6×5000 6 5000 750 80 8 7.5
6×6000 6 6000 750 80 8 7.5
8×2500 8 2500 750 80 14 7.5
8×3200 8 3200 750 80 12 7.5
8×4000 8 4000 750 80 10 7.5
8×5000 8 5000 750 80 7 15
8×6000 8 6000 750 100 7 15
10×2500 10 2500 750 120 10 15
10×3200 10 3200 750 120 8 15
10×4000 10 4000 750 120 6 15
10×5000 10 5000 750 120 5 15
10×6000 10 6000 750 120 5 15
12×2500 12 2500 750 120 10 15
12×3200 12 3200 750 120 8 15
12×4000 12 4000 750 120 6 15
12×5000 12 5000 750 120 5 18.5
12×6000 12 6000 750 120 4 18.5
