CNC Horizontal V Grooving Machine

As one of the leading and professional manufacturers and suppliers of cnc horizontal v grooving machine in China, SHENCHONG now warmly welcomes you to buy the quality, precise and durable machine for sale from our factory. Please be free to check the price with us.







Description

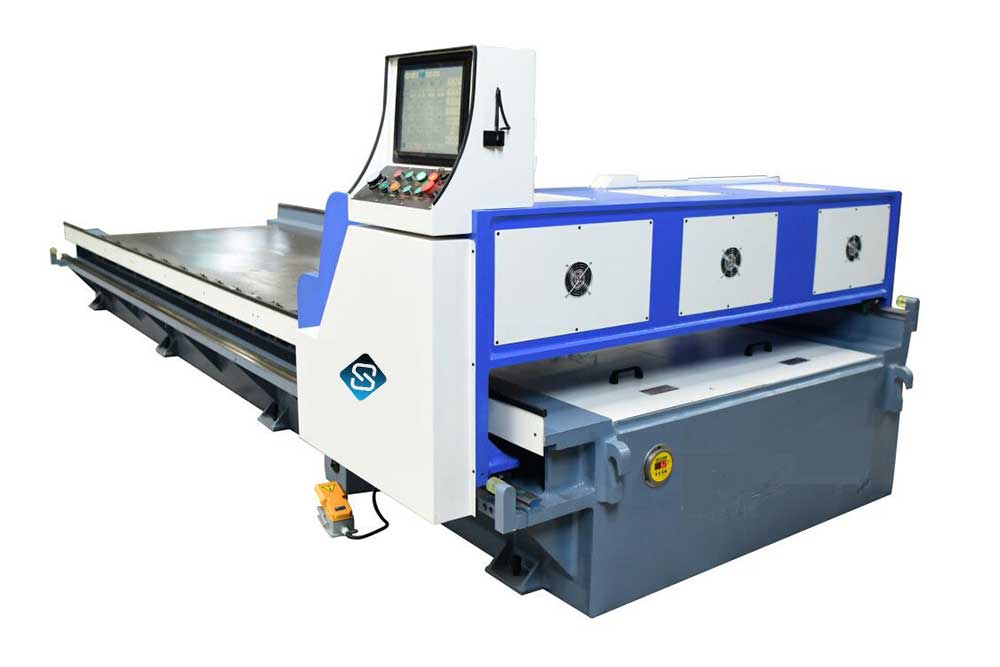

Product Description – CNC Horizontal V Grooving Machine

This machine is fully CNC Groover machine for metal sheet .It adopt advanced CNC innovative design with the advantages of high processing precision , simple operation ,no noise , no vibration and so on.It is widely used in the sheet metal V-Grooer, U-groove  and other irregular groover processing (including stainless steel , aluminum , aluminum plate, copper, iron, plastic, wood, acrylic panel other special plates). it is applicable to  the V-groover processing of sheet metal before bending.


Product Application – CNC Horizontal V Grooving Machine

1.The Base And The Beam Of The Machine Are Frame Structure. The Entire Rigidity Is Quite Good And There Is Small Degree Of Deformation.

2.The Base Is Fixed. The Bevel Wheel And The Spline Of Moving Can Be Adjusted With Altering Frequency.The Process Of Cutting Is Stable And Efficient And Surface Cut Is Even And Smooth.

3.The X Axis Is For Digital Display. The Y1,Y2 And Z Axes Are For Digital Control With High Accuracy Of Location And Large Range Of Processing.

4.There Are Side Pressing And End Pressing Devices On The Machine,Both Of Which Use Hydraulic Pressure To Tighten.The Force Of Tightening Is Adjustable And Reliable.

5.The Hydraulic System Has One More Energy Storage Compensation Function.The Dynamo Works At Interval So The Energy Is Saved And The Oil Temperature Is Controlled.

6.The Machine Can Self-Dig.After Long Time Of Operation,If The Surface Of The Machine Is Uneven Or Has Flaws,The Self-Digging Function Can Be Utilized And The Machine Will Start As A New One


Configuration – CNC Horizontal V Grooving Machine

No Name Brand
1 CNC system Japan
2 Hydraulic system Taiwan famous brand
3 Frequency converter Mitsubishi,Japan
4 Servo motor Mitsubishi,Japan
5 Seal ring VALQUA,Japan
6 Motor SEW,Germany
7 Air switch Schneider
8 Contactor Schneider
9 Breaker and button Schneider
10 Relay Schneider
11 Blades KORLOY,Korea
12 Linear guide HINWIN, Taiwan
13 Wire IGUS, Germany




Technical Data – CNC Horizontal V Grooving Machine

No Name Data Unit
1 The width of grooving 1500 mm
2 The length of length 4000 mm
3 The thickness of grooving(Stainless steel) 0.5-4 mm
4 The Min thickness of plate 0.5 mm
5 Min side distance 6-8 mm
6 X axis working speed 70 m/min
7 X axis return speed 80 m/min
8 Y1 axis max distance 1500 mm
9 Y1 axis move speed 20 m/min
10 Y1 axis resolution 0.001 mm
11 Repeat positioning accuracy ±0.01 mm
12 Z axis resolution 0.001 mm
13 Repeat positioning accuracy ±0.01 mm
14 Motor power X axis 5.5     KW
Y1.Y2.Z axis 1
15 Machine size length 6150 mm
width 2700
high 1560
15 Machine weight 9,600 KGS
